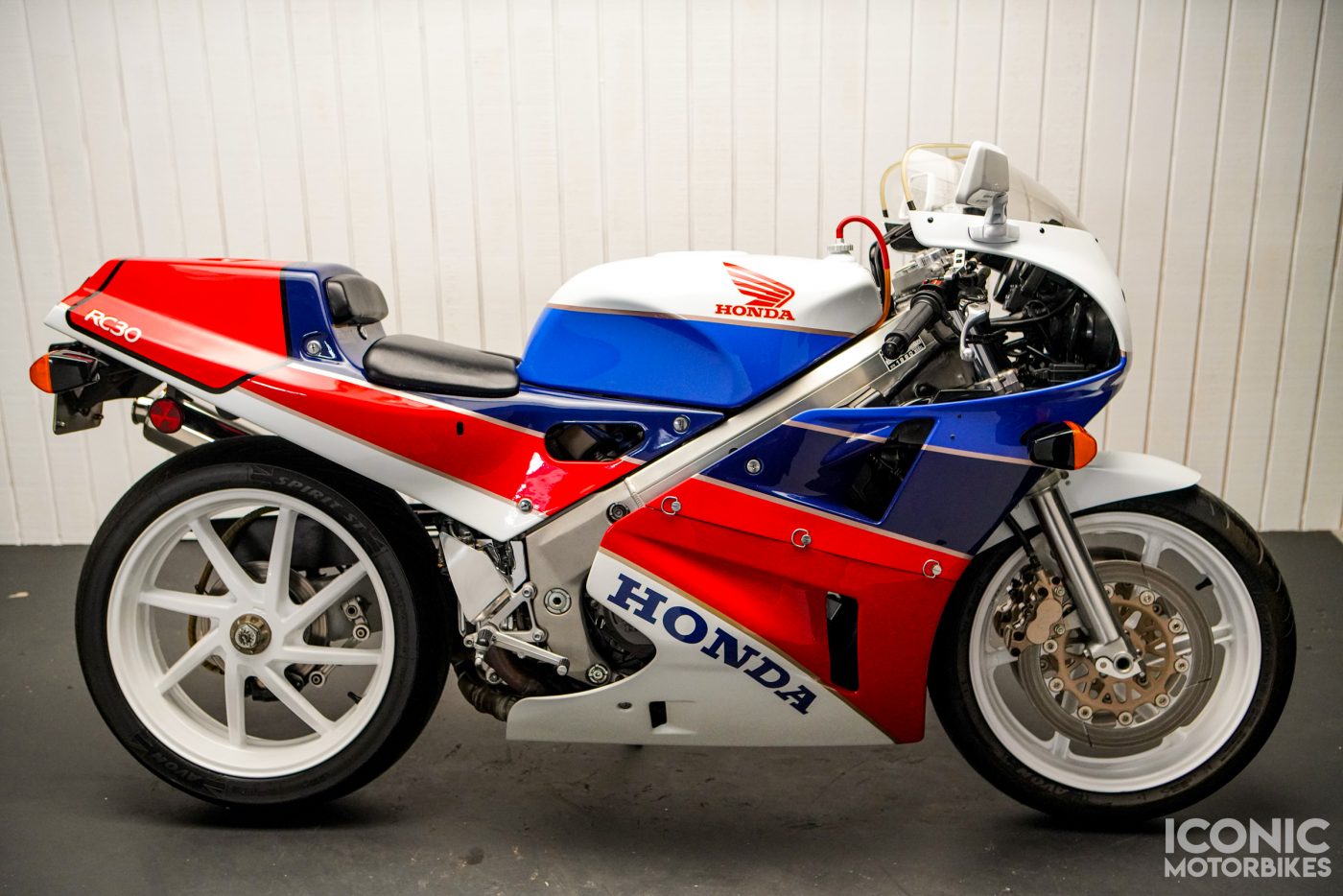

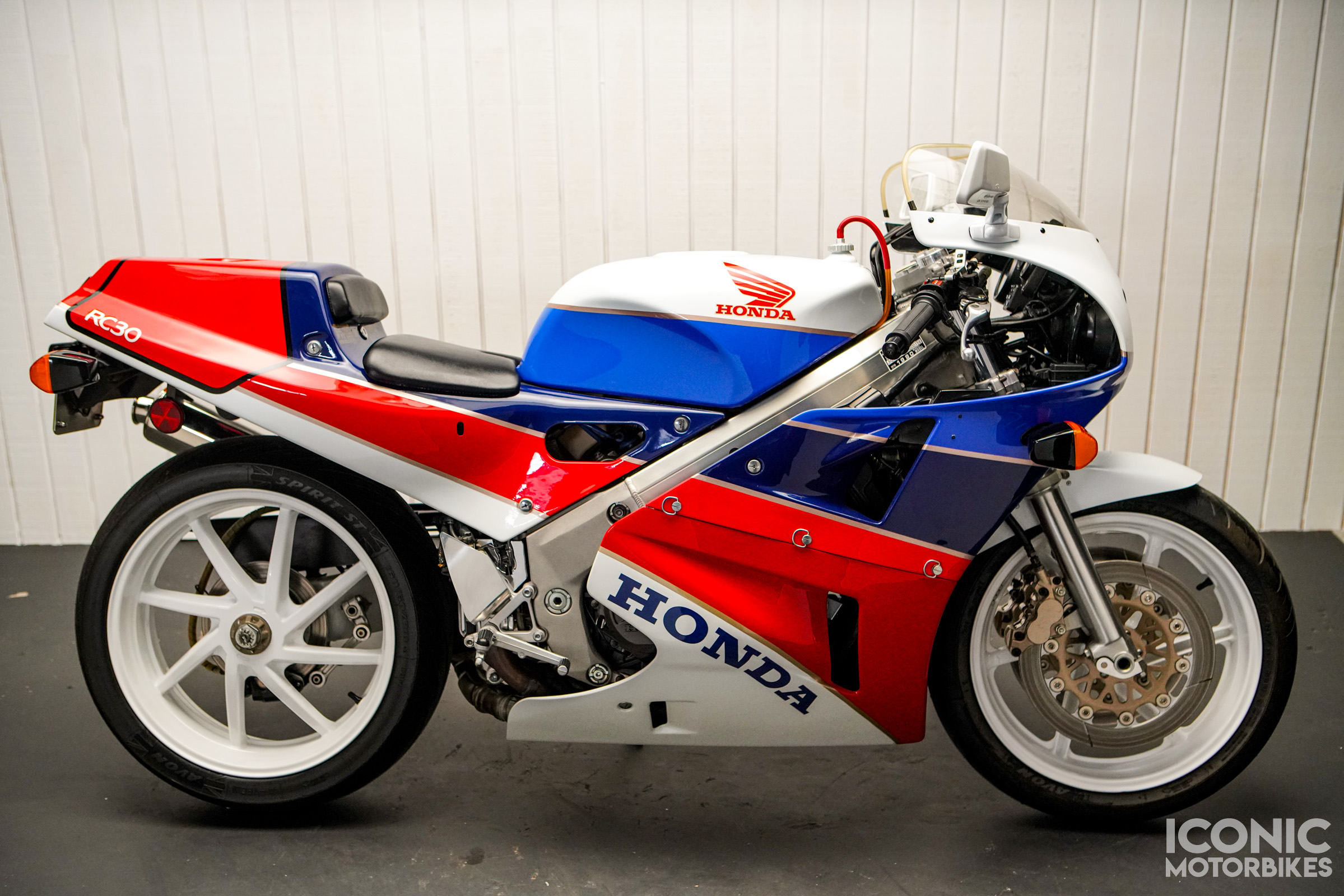

1990 Honda RC30

Description

Click here for an VINData Motorcycle History Report on this 1990 Honda RC30.

When the new World Superbike Championship was introduced in 1988, Honda had an issue as its highly successful custom-built RVF750 factory endurance racer (not the RC45) wouldn’t be eligible to compete. So they set out to create a new top-shelf, street-legal, limited edition race bike, producing the minimum number of units required to satisfy homologation rules. Knowing it would only have to turn out a relatively small batch of machines, Soichiro Honda wanted to use the new model to demonstrate what its factory race department was capable of. The result was a no-expense-spared race-grade legend brimming with features previously reserved for track-only machinery. Japan called it the VFR750R, but the bike we fell in love with in America was named the RC30.

At the heart of the RC30 was a liquid-cooled, 748cc, 90-degree V4 engine with four valves per cylinder, gear-driven double-overhead cams, titanium connecting rods, forged two-ring pistons, an 11.0:1 compression ratio, and a “big bang” firing order. Paired with a six-speed transmission with a trick slipper clutch, the sophisticated V4 made 118 hp at 11,000 rpm and 55 ft-lbs of torque at 9,800rpm (unrestricted). The VFR750R had a best-in-class dry weight of 396 lbs and a wet weight of 488 lbs, which was almost 10 lbs less than the game-changing Suzuki GSX-R750. The VFR had a top speed of over 150mph, and thanks to an incredibly high gear ratio, could break 80 mph in first gear.

The RC30 got fully-adjustable Showa suspension fore and aft — 43mm telescopic forks up front and a mono-shock out back. Braking duties went to a pair of fully floating 310mm discs bit by four-piston Nissin calipers in the front and a single 220m unit pinched by a dual-pot caliper in the rear. The bike’s fork sliders also allowed the front calipers to remain in place during wheel changes, a feature that, like the ELF-designed single-sided swing-arm, was born out of competition for ultra-quick pit stops.

In total, only 316 RC30s were sold in the US – and only in the 1990 model year.

This example is VIN: JH2RC3004LM200156. The seller purchased this bike from a previous Iconic auction.

The odometer shows 9,638 miles.

Maintenance:
In preparation for the listing, the seller had us perform a safety inspection, our service department notes the following on their condition report:

Gas Tank Internal Condition: Ok
Engine Oil Level: Ok
Engine Oil Quality: New
2T Oil Level: N/A
Coolant Level: Ok
Coolant Quality: Ok, <150 mV
Front Hydraulic Fluid Level: Ok
Front Hydraulic Fluid Quality: New, <1.5% Moisture
Rear Hydraulic Fluid Level: Ok
Rear Hydraulic Fluid Quality: New, <1.5% Moisture
Clutch Hydraulic Fluid Level: EMPTY
Clutch Hydraulic Fluid Quality: New, <1.5% Moisture
Final Drive Condition: Ok
Headlight High Beam: Ok
Headlight Low Beam: Ok
Passing Light: N/A
Parking Light: Ok
Turn Signals: Ok
Tail Light: Ok
Brake Light (Front Switch): Ok
Brake Light (Rear Switch): Ok
Plate Light: Ok
Horn: NO HORN
Kill Switch: UNKNOWN
Brake Pad % Remaining Front: 80%
Brake Pad % Remaining Rear: 50%
Forks: Ok
Shock/s: Ok
Tire Date Code Front: 38/18
Tire Date Code Rear: 17/18
Tire % Remaining Front: 99%
Tire % Remaining Rear: 99%
Tire Press. Front: 36 PSI
Tire Press. Rear: 38 PSI
Battery Standing Voltage: 13.07V
Charging Voltage @ 4k RPM: 13.60V
Running Condition: Ok
Test Ride Completed: Yes
Test Ride Distance: 3 Miles, unit operates as designed

Tires Installed:
-Front: 120/70-17
-Rear: 160/60-18 Non OE Size

Notes:
-Tires aged

REPAIRS RECOMMENDED:
-Replace aged tires

Modifications:
The bike appears to be stock.

Inside of the tank:

It is riding on Avon Spirit ST tires with date codes of 1718 and 3718.

The sale includes one key.

Cosmetic Blemishes: please see the album up top for all known cosmetic blemishes. Here is a selection:

Currently located in Panorama City, California, this Honda is offered on a clean Illinois title. Have any RC30 stories or questions about this listing? Let us know in the “Comments” tab!
