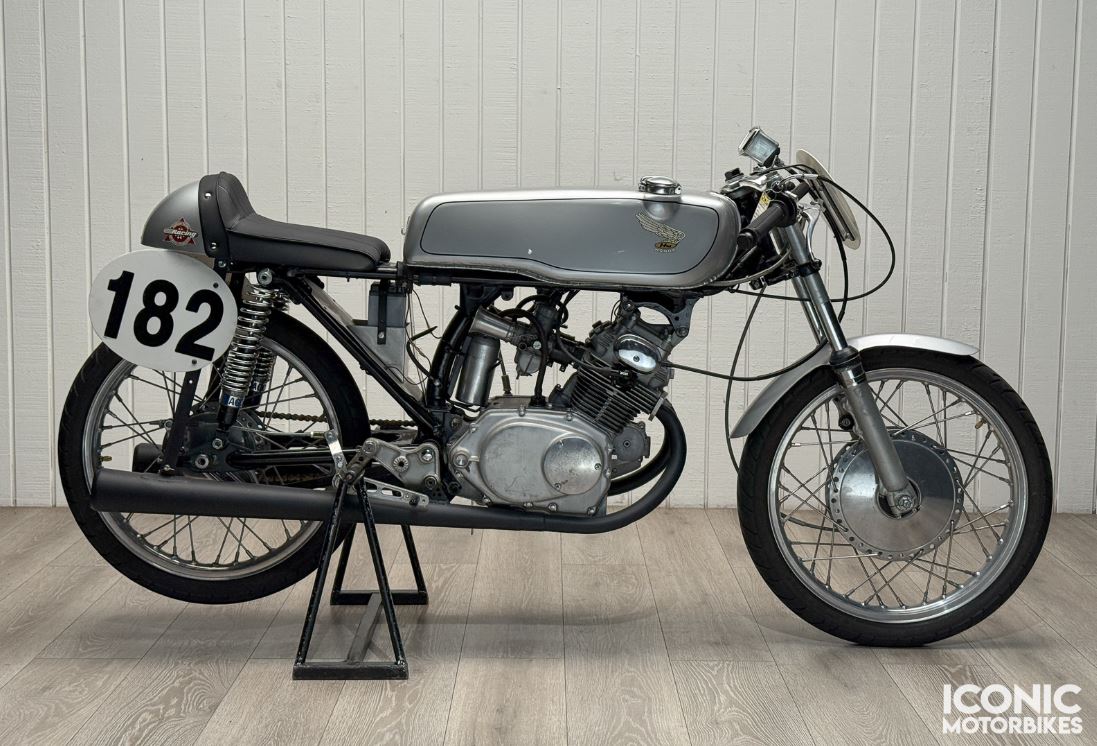

One of the truly iconic small-displacement Japanese bikes, the Honda CB160 was first introduced back in 1965. At the time, the lightweight class was all the rage, and Big Red incorporated tons of trickle-down technology from its larger models to make it attractive to younger riders. Almost fifty years later, the same model inspired a gentleman named Tim Fowler in the Pacific Northwest to go racing on the cheap and it’s led to multiple classes for race organizations around the country.
For those of you that are interested in Tim’s story, here’s a short (11 minute) documentary on how CB160 racing got started in the US.
This example is VIN: B1601027298. Please note that the VIN shown on the Colorado title is “CB1601027298”.
There is no odometer, true mileage is unknown.
PLACEHOLDER: SELLER STORY.
Maintenance:
In preparation for the listing, the seller had us perform a safety inspection. Our service department notes the following on their condition report:
Gas Tank Internal Condition: Ok
Engine Oil Level: Low
Engine Oil Quality: Dark (Age Unknown)
2T Oil Level: N/A
Coolant Level: N/A
Coolant Quality: N/A
Front Hydraulic Fluid Level: N/A
Front Hydraulic Fluid Quality: N/A
Rear Hydraulic Fluid Level: N/A
Rear Hydraulic Fluid Quality: N/A
Clutch Hydraulic Fluid Level: N/A
Clutch Hydraulic Fluid Quality: N/A
Final Drive Condition: Dry and Tight
Headlight High Beam: N/A
Headlight Low Beam: N/A
Passing Light: N/A
Parking Light: N/A
Turn Signals: N/A
Tail Light: N/A
Brake Light (Front Switch): N/A
Brake Light (Rear Switch): N/A
Plate Light: N/A
Horn: N/A
Kill Switch: Ok
Brake Pad % Remaining Front: Drum Ok
Brake Pad % Remaining Rear: Drum Ok
Forks: Ok
Shock/s: Ok
Tire Date Code Front: 11/10
Tire Date Code Rear: 31/08
Tire % Remaining Front: 80%
Tire % Remaining Rear: 80%
Tire Press. Front: 22 PSI
Tire Press. Rear: 24 PSI
Battery Standing Voltage: 0V Dead
Charging Voltage @ 4k RPM: Unknown
Running Condition: Crank No Start (Ran on Roll Starter)
Test Ride Completed: None Taken
Test Ride Distance: N/A
Notes:
-Race Bike No Lighting or Starter Assembly
-Chain is dry and tight
-Missing Tank Rubber securement
-Oil appears dark and is low but has no dipstick
-Cranks on Roll Starter will not start
-Bike does not show spark when on a jumper
-Battery is dead and not viable
-Plugs in carburetor throats
-Bike appears to be in a display state would need to go through all facets to make sure its is viable for the track
Recommendations:
-Battery
-Chain Service
-Replace Tank Securement band
-Oil Change and Oil Slinger Inspection
-Need to replace dipstick if one is available
-No Start Diagnostic
Modifications:
Hagon shocks.
Inside of the tank:
It is riding on Bridgestone Battlax BT39SS tires that have aged out with date codes of 3108 and 1110.
rCosmetic Blemishes: please see the album in the “Photos” tab for all known cosmetic blemishes. Here is a selection:
Currently located in Panorama City, California, (please make an appointment for an inspection) this Honda is offered on a clean Colorado title. Have any CB160 stories or questions about this listing? Let us know in the “Comments” tab!
